PS-14L7 - low profile enclosure
PS-14L7 is compact size, low profile outdoor enclosure. This box has transparent or red tinted polycarbonate window and hole for installing one SCHUKO socket. There is an internal fixings for base plate or PCB with surface mounted LED panels or other light source elements on the bottom part.

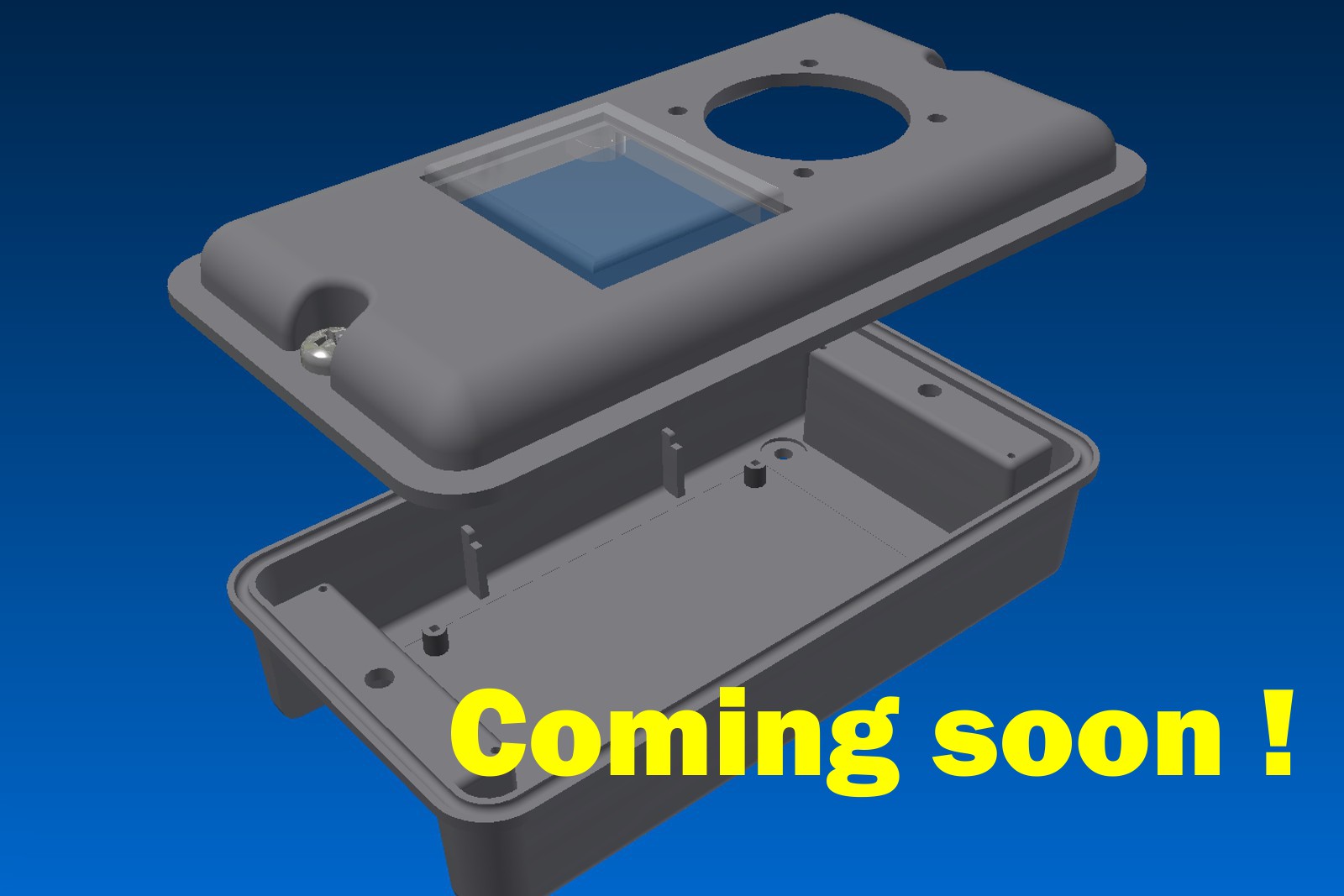

Enclosure consists of base part, where is possible to install up to four PG9 cable inlets, top cover with transparent or red tinted window, rubber o-ring and two INOX screws. Window is isolated with additional o-ring
This product is not suitable for DIN-rail mountable devices !
Accessories
PS-14PP1 – Stainless steel bracket for fixing to poles diameter 100 mm or more. The kit includes four AISI screws to attach the PS-014 serie enclosures
PS-14PP2 – Stainless steel bracket for fixing to poles diameter 60-100 mm. The kit includes four AISI screws to attach the PS-014 serie enclosures
4KITPG9-1 – kit of four nylon PG9 cable inlets, provided for clamping cables with a diameter 4-8 mm
PS-014BP1 – stainless steel base plate for PS-014 serie enclosures. Includes four self tapping screws
PS-014BP2 – stainless steel base plate with 35 mm DIN rail. Includes four self tapping screws
SCHUKO-P – SCHUKO type 220/230 V power socket. Includes four screws with nuts
SCHUKO-P – SCHUKO type 220/230 V power socket with protective cap. Includes four screws with nuts
PS-014 serie
Serie PS-014 contains various medium size enclosures, provided for indoor or outdoor use. Those products has IP67 protection class and made from high-grade, UW stabilised polycarbonate (PC)
